Mechanical Folding Head Line Stop – Advanced Pipeline Isolation Services
Overview
The Mechanical Folding Head Line Stop Services is an advanced technique used in pipeline isolation services to isolate the live area of the pipeline. The technique employs a specially designed folding head, which is inserted through a reduced-size branch to create a secure seal within the pipe with full operational flow in the rest of the system. Mechanical Folding Head solutions provide maintenance, modification, and repair without interrupting the entire pipeline production, while keeping it running, safe, and cost-effective.

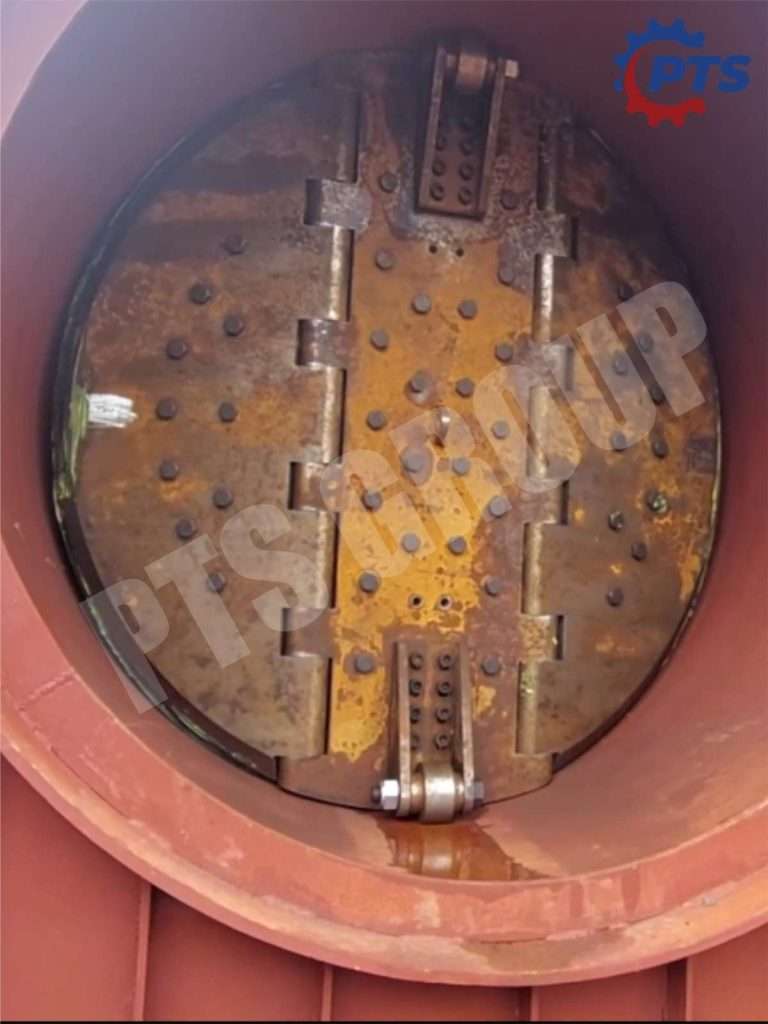

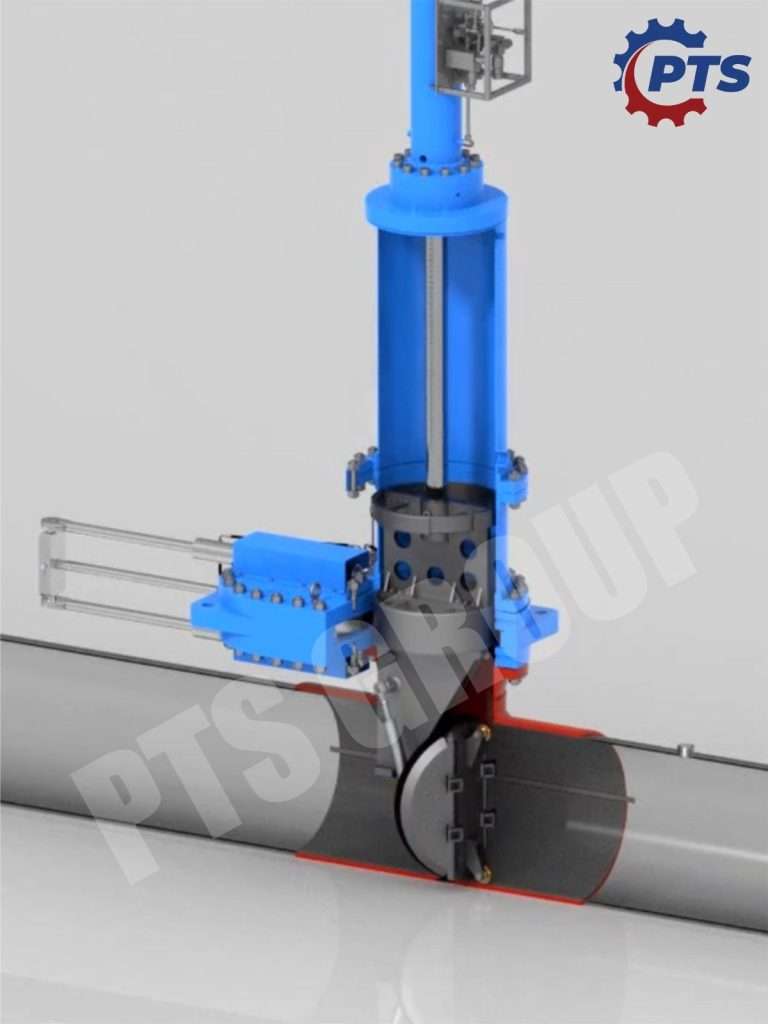

Gallery
Key Features and Applications
- Requires A smaller Sizes Hot Tapping, thus maintaining the Pipeline Integrity
- Line Stop can be performed using standard-size line stop equipment
- Presents system pressure integrity and structural safety
- Designed for utility and service lines with low-pressure operations.
- Compatible with different types of pipe materials (steel, ductile, etc.)
- It is very lightweight.
- Minimizes downtime via direct mechanical line stop techniques.
- Can be deployed in projects where the size of the line stop is large and the pressure is low
- Due to its light weight capacity it is compatible with different type of pipe materials.
Specification– Mechanical Folding Head Line Stop Equipment
- Supports pipeline diameters from 14" to 102"
- Has an operating pressure of up to 8 bar (116 psi).
- Suitable for the pipelines made from carbon steel, ductile iron, and stainless steel.
- Compact folding head with a positive seal for effective shut-off
Application– Reliable Pipeline Isolation Services for Large Diameter Systems
The Mechanical Folding Head Line Stop is designed for large diameters of pipelines – from 14 inches to 102 inches, operating under pressures up to 8 bar. It is commonly applied in pipeline isolation services involving water, gas, crude oil, and industrial fluid systems, offering effective isolation with low-pressure attenuation on the strength of pipelines.
- Segment parts for valve or fitting replacement.
- Enables modifications without system shutdown
- Applied in crude oil, refined products, and gas pipelines
- Suited for normal maintenance in water distribution networks
- Helps in emergency line isolation in low-pressure systems
- Minimizes the interruption of flow during the upgrading of infrastructure.
- It guarantees safety conditions while servicing pipelines.
Why Choose Us
Enhanced Safety Standards
Adherence to strict safety protocols throughout every mechanical line stop operation.
Reliable and Precise Solutions
Expertise in handling a wide variety of pipeline systems with precision.
Cost Savings
Minimized downtime and efficient equipment reduce overall project expenses.
FAQs
Can the folding head line stop be used on pipelines with limited access or unusual routing?
Yes, the system is highly adaptable and mostly used in complex environments where mechanical line stop methods are required for limited-access conditions.
Is the system effective for ongoing maintenance programs in large utility networks?
Absolutely. It’s a reliable option within routine pipeline isolation services, making sure that there is uninterrupted flow while performing upgrades or inspections.
What is the typical pressure drop experienced during the process?
The process is engineered to maintain a low pressure drop across the system, which is one of the advantages of the Mechanical Folding Head Line Stop design.
Can this method be used in hazardous or flammable environments?
Yes, with proper safety protocols in place, the mechanical line stop method is suitable for flammable gas and chemical pipelines, reducing the risk and downtime.
How is the pipe integrity preserved ?
The Mechanical Folding Head Line Stop reduces stress and retains pipeline ingetry , mainly due to the smaller diameter size of Hot Tapping.
What types of industries commonly use this method?
It is widely used in Low Pressure Pipelines
